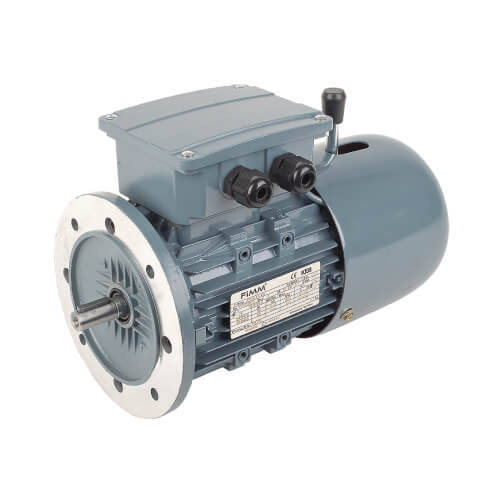

FIMM-KEB – FMB Series Three Phase Motors with DC Brake

  • Electromagnetic Brake Motor
  • Voltage : 3 Phase 400/690V.
  • Frame size from 71– 160
  • Frequency 50/60 Hz
  • Pole: 4
  • Duty S1
  • Ambient Temp. (-15 Cº) to (40 Cº)
  • Altitude up to 1000 m. above sea level
  • Insulation class F (Class H is on request)
  • Temperature rise Class B
  • Degree of protection IP55 (IP66 is on request)
  • IE1 Standard Efficiency
  • IEC Standard and relevant harmonized standards derived within the EEC
