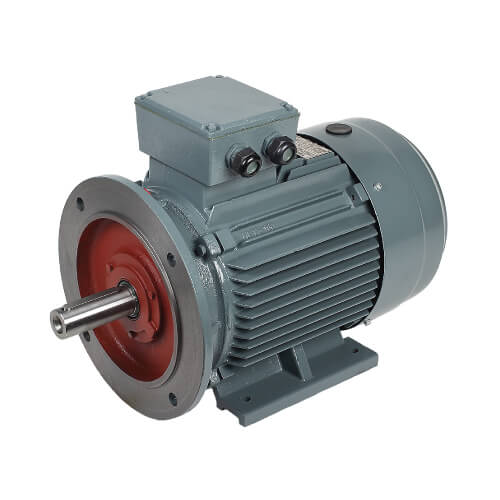

FIMM-KEB – FM Series Three Phase Motors

  • FM Series – Cast Iron Housing
  • Three Phase Induction Motor
  • Voltage : 400/690 V.
  • Frame size from 80 to 355
  • Frequency 50/60 Hz
  • Pole: 2, 4, 6 and 8
  • Frame mounting B3, B5, B35, B14, B34
  • Duty S1
  • Ambient Temp. (-15 Cº) to (40 Cº)
  • Altitude up to 1000 m. above sea level
  • Insulation class F (Class H is on request)
  • Temperature rise Class B
  • Degree of protection IP55 (IP66 is on request)
  • IE2 High Efficiency
  • IEC Standard and relevant harmonized standards derived within the EEC
